Early English Tracery

Click to enlarge

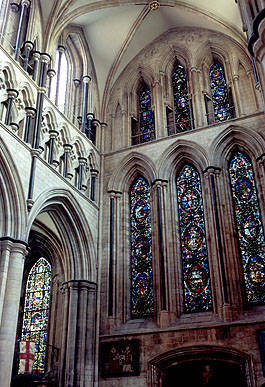

Beverley Minster, Yorkshire

The adoption of the pointed archGlossary Term in the later C12 encouraged a new and more flexible approach to window design. LancetGlossary Term windows could be used separately if the space was tight, or grouped together in a single composition, with windows either of identical height, or graduated to fill a gableGlossary Term wall.

Click to enlarge

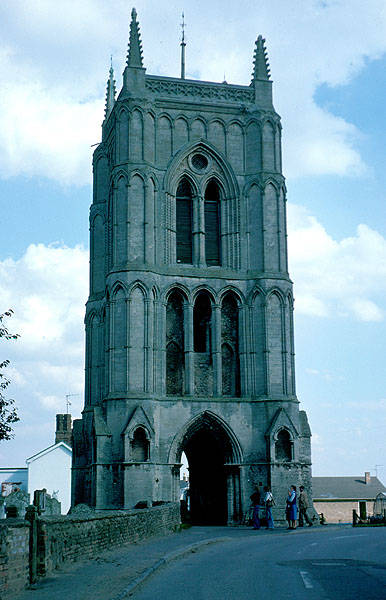

Norfolk, West Walton, St Mary

The pointed archGlossary Term was also used to transform the RomanesqueGlossary Term tradition of decorative arcading, as demonstrated at West Walton, Norfolk.

Glossary

Arch

Types include: Basket arch or Anse de Panier (French, lit. basket handle): three-centred and depressed, or with a flat centre. Chancel: dividing chancel from nave or crossing in a church. Crossing: spanning piers at a crossing in a church. Depressed or three-centred: with a rounded top, but curving inward more at the sides. Four-centred: with four arcs, the lower two curving inward more than the upper, with a blunt central point; typical of late medieval English architecture. Jack arch: shallow segmental vault springing from beams, used for fireproof floors, bridge decks, etc. Ogee (adjective ogival): a pointed arch with a double reverse curve, especially popular in the 14th century; a nodding ogee curves forward from the wall face at the top. Parabolic: shaped like a chain suspended from two level points, but inverted. Relieving or discharging: incorporated in a wall to relieve superimposed weight. Shouldered: with arcs in each corner and a flat centre or lintel. Skew: spanning responds not diametrically opposed. Stilted: with a vertical section above the impost i.e. the horizontal moulding at the springing. Strainer: inserted in an opening to resist inward pressure. Three-centred: see Depressed, above. Transverse: spanning a main axis (e.g. of a vaulted space). Triumphal arch: influential type of Imperial Roman monument, free-standing, with a square attic or top section and broad sections to either side of the main opening, often with lesser openings or columns. Tudor: with arcs in each corner joining straight lines to the central point. Two-centred: the simplest kind of pointed arch.

Gable

Peaked external wall at the end of a double-pitch roof. Types include: Dutch gable, with curved sides crowned by a pediment (also called a Flemish gable); kneelered gable, with sides rising from projecting stones (kneelers); pedimental gable, with classical mouldings along the top; shaped gable, with curved sides; tumbled gable, with courses or brick or stonework laid at right-angles to the slope. Also (Scots) a whole end wall, of whatever shape.

Lancet

Slender single-light, pointed-arched window. Hence lancet style, the first phase of English Gothic architecture (c. 1180-1250; also called Early English), from its use of such windows.

Romanesque

The dominant style of Western Europe in the 11th and 12th centuries. It is associated especially with the expansion of monasticism and the building of large stone churches, and is characterized by massive masonry, round-headed arches and vaulting inspired by ancient Roman precedent, and by the use of stylized ornament. In England it is commonly known as Norman.
